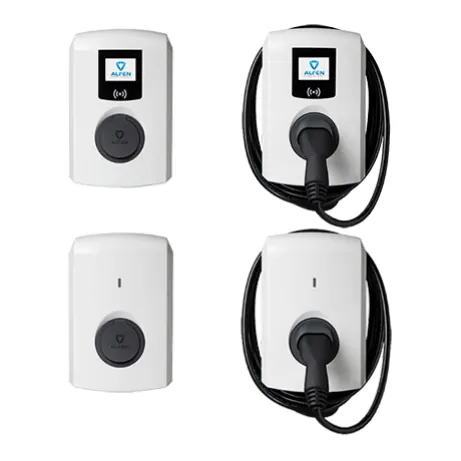

AlfenEve Single 22kW socket version
The Alfen Eve Single 22kW socket version is a EV charger with max. charging power (AC) 22.1 kW, phases 3 and connector Type 2 socket.1,2
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Connector | Socket (Type 2)2 |
| Number of outlets | 11 |
| Min. operating temperature | -25 °C2 |
| Performance | |
| Max. charging power (AC) | 22.1 kW1 |
| Electrical | |
| Phases | 32 |
| Max. current per phase | 32 A2 |
| Connectivity & smart | |
| OCPP | 1.5, 1.6J, 2.0.12 |
| OCPP certified (OCA) | Yes2 |
| Wi-Fi | Yes2 |
| Ethernet | Yes2 |
| 4G/LTE | Yes2 |
| RFID card reader | Yes2 |
| Dynamic load balancing | Yes2 |
| Smart meter (P1) input | Yes2 |
| Safety & metering | |
| MID-certified meter | Yes2 |
| Built-in 6 mA DC leakage detection | Yes2 |
| IP rating | IP552 |
| IK rating | IK102 |
| Dimensions & weight | |
| Width | 242 mm2 |
| Height | 373 mm2 |
| Depth | 138 mm2 |
| Weight | 4 kg2 |
| Grants & market | |
| OZEV eligible (UK) | Yes1 |
Manufacturer documentation
- Datasheet / specifications — Alfen Eve Single – datasheet technische specificatie, V1.3 (03/2026)
External links to Alfen's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Alfen Eve Single 22kW socket version?
The max. charging power (AC) of the Alfen Eve Single 22kW socket version is 22.1 kW.1,2
What is the phases of the Alfen Eve Single 22kW socket version?
The phases of the Alfen Eve Single 22kW socket version is 3.1,2
Sources
- Authorised chargepoint model list — Office for Zero Emission Vehicles (OZEV), GOV.UK · accessed 27 Sept 2026
- Alfen Eve Single – datasheet technische specificatie, V1.3 (03/2026) — Alfen ICU B.V. · accessed 27 Sept 2026
- SEAI EV Home Charger Grant — Sustainable Energy Authority of Ireland (SEAI)
