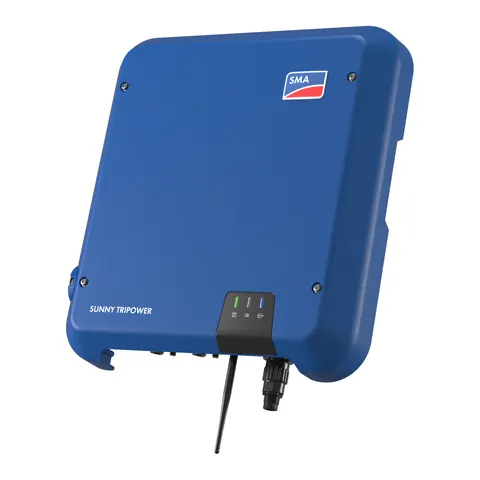

SMASunny Tripower 10.0
The SMA Sunny Tripower 10.0 is a solar inverter with AC power 10 kW, MPP trackers 2 and european efficiency 98 %.1
Key figures
Technical specifications
| Performance | |
|---|---|
| AC power | 10 kW1 |
| Max. PV array power | 15 kWp1 |
| MPP trackers | 21 |
| Strings per MPPT | 21 |
| Efficiency | |
| Max. efficiency | 98.3 %1 |
| European efficiency | 98 %1 |
| Noise | |
| Noise | 30 dB(A)1 |
| Electrical | |
| MPPT voltage min. | 320 V1 |
| MPPT voltage max. | 800 V1 |
| Max. input current per MPPT | 20 A1 |
| Phases | 31 |
| Connectivity & smart | |
| Wi-Fi / monitoring | Yes1 |
| Dimensions & weight | |
| IP rating | IP651 |
| Width | 460 mm1 |
| Height | 497 mm1 |
| Depth | 176 mm1 |
| Weight | 20.5 kg1 |
| Warranty & lifespan | |
| Warranty | 5 years1 |
Manufacturer documentation
- Product page
- Datasheet / specifications — Sunny Tripower 8.0 / 10.0 – datasheet – STP8-10-3AV-40-DS-en-41 (last updated 02/2025)
External links to SMA's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the AC power of the SMA Sunny Tripower 10.0?
The AC power of the SMA Sunny Tripower 10.0 is 10 kW.1
What is the MPP trackers of the SMA Sunny Tripower 10.0?
The MPP trackers of the SMA Sunny Tripower 10.0 is 2.1
What is the european efficiency of the SMA Sunny Tripower 10.0?
The european efficiency of the SMA Sunny Tripower 10.0 is 98 %.1
What is the max. PV array power of the SMA Sunny Tripower 10.0?
The max. PV array power of the SMA Sunny Tripower 10.0 is 15 kWp.1
Sources
- Sunny Tripower 8.0 / 10.0 – datasheet, STP8-10-3AV-40-DS-en-41 (last updated 02/2025) — SMA Solar Technology AG · accessed 27 Sept 2026
