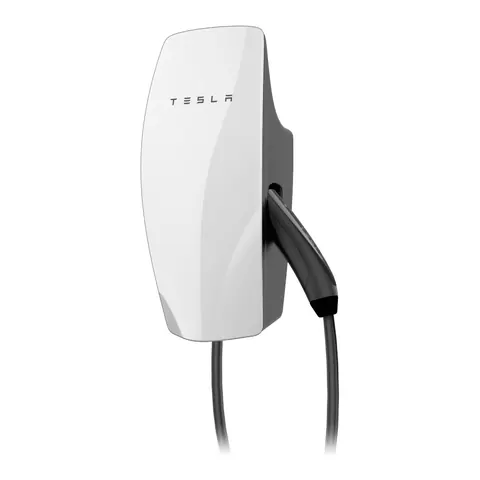

TeslaWall Connector (Gen 3)
The Tesla Wall Connector (Gen 3) is a EV charger with max. charging power (AC) 22.1 kW, phases 3 and connector tethered cable (Type 2).1
Key figures
UK
Rules in the UK
Home chargers sold in Great Britain must meet the smart charge point regulations (smart functionality, default off-peak charging).
Technical specifications
| General | |
|---|---|
| Connector | Tethered cable (Type 2)1 |
| Cable length | 7.3 m1 |
| Min. operating temperature | -30 °C1 |
| Performance | |
| Max. charging power (AC) | 22.1 kW1 |
| Electrical | |
| Phases | 31 |
| Max. current per phase | 32 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| Dynamic load balancing | Yes1 |
| Safety & metering | |
| RCD protection | Type A1 |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP551 |
| IK rating | IK081 |
| Dimensions & weight | |
| Width | 155 mm1 |
| Height | 345 mm1 |
| Depth | 110 mm1 |
| Weight | 6.8 kg1 |
Manufacturer documentation
- Product page
- Manual — Wall Connector 3 Install Manual – Type 2 Handle (EMEA, en-GB) – PDF van 03-08-2026
External links to Tesla's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Tesla Wall Connector (Gen 3)?
The max. charging power (AC) of the Tesla Wall Connector (Gen 3) is 22.1 kW.1
What is the phases of the Tesla Wall Connector (Gen 3)?
The phases of the Tesla Wall Connector (Gen 3) is 3.1
Which connector does the Tesla Wall Connector (Gen 3) use?
The connector of the Tesla Wall Connector (Gen 3) is tethered cable (Type 2).1
Does the Tesla Wall Connector (Gen 3) have dynamic load balancing?
Yes, the Tesla Wall Connector (Gen 3) has dynamic load balancing.1
Sources
- Wall Connector 3 Install Manual – Type 2 Handle (EMEA, en-GB), PDF van 03-08-2026 — Tesla, Inc. · accessed 27 Sept 2026
