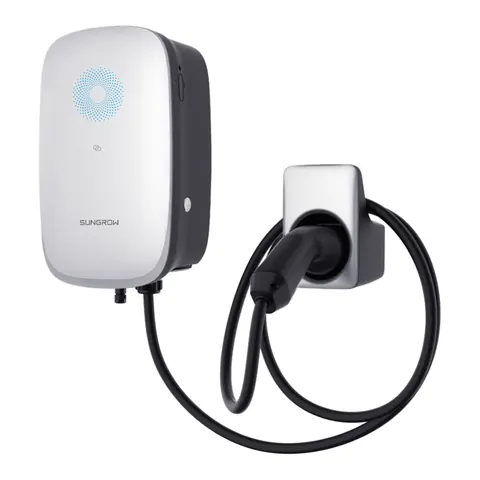

SungrowAC22E-01
The Sungrow AC22E-01 is a EV charger with max. charging power (AC) 22 kW and phases 3.1
Key figures
UK
Rules in the UK
Home chargers sold in Great Britain must meet the smart charge point regulations (smart functionality, default off-peak charging).
Technical specifications
| General | |
|---|---|
| Min. operating temperature | -30 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Phases | 31 |
| 1↔3 phase switching | Yes1 |
| Max. current per phase | 32 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| 4G/LTE | Yes1 |
| RFID card reader | Yes1 |
| Display | No1 |
| Dynamic load balancing | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP651 |
| IK rating | IK101 |
| Dimensions & weight | |
| Width | 214 mm1 |
| Height | 346 mm1 |
| Depth | 125 mm1 |
Manufacturer documentation
- Datasheet / specifications — Sungrow AC22E-01 Datasheet – 4
External links to Sungrow's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Sungrow AC22E-01?
The max. charging power (AC) of the Sungrow AC22E-01 is 22 kW.1
What is the phases of the Sungrow AC22E-01?
The phases of the Sungrow AC22E-01 is 3.1
Does the Sungrow AC22E-01 have dynamic load balancing?
Yes, the Sungrow AC22E-01 has dynamic load balancing.1
Sources
- Sungrow AC22E-01 Datasheet, 4 — Sungrow Power Supply Co., Ltd. · accessed 29 Sept 2026
