SungrowAC007E-01

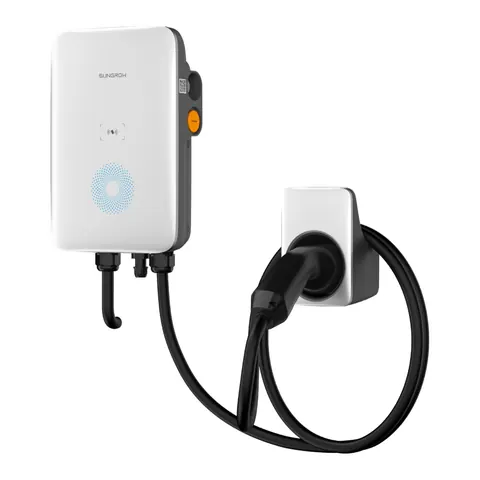

The Sungrow AC007E-01 is a EV charger with max. charging power (AC) 7.4 kW, phases 1 and connector tethered cable (Type 2).1
Key figures
UK
Rules in the UK
Home chargers sold in Great Britain must meet the smart charge point regulations (smart functionality, default off-peak charging).
Technical specifications
| General | |
|---|---|
| Connector | Tethered cable (Type 2)1 |
| Cable length | 7 m1 |
| Min. operating temperature | -30 °C1 |
| Performance | |
| Max. charging power (AC) | 7.4 kW1 |
| Electrical | |
| Phases | 11 |
| Max. current per phase | 32 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| RFID card reader | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP651 |
| IK rating | IK081 |
| Dimensions & weight | |
| Width | 205 mm1 |
| Height | 310 mm1 |
| Depth | 92 mm1 |
| Weight | 4.2 kg1 |
| Warranty & lifespan | |
| Warranty | 5 years1 |
Manufacturer documentation
- Datasheet / specifications — AC007/011E-01 – Version 3 EUR
External links to Sungrow's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Sungrow AC007E-01?
The max. charging power (AC) of the Sungrow AC007E-01 is 7.4 kW.1
What is the phases of the Sungrow AC007E-01?
The phases of the Sungrow AC007E-01 is 1.1
Which connector does the Sungrow AC007E-01 use?
The connector of the Sungrow AC007E-01 is tethered cable (Type 2).1
Sources
- AC007/011E-01, Version 3 EUR — Sungrow Power Supply Co., Ltd. · accessed 29 Sept 2026
