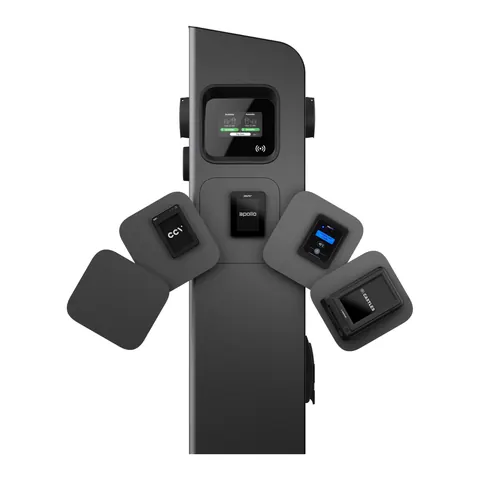

EtrelINCH Duo
The Etrel INCH Duo is a EV charger with max. charging power (AC) 22 kW, phases 3 and connector Type 2 socket.1
Key figures
UK
Rules in the UK
Home chargers sold in Great Britain must meet the smart charge point regulations (smart functionality, default off-peak charging).
Technical specifications
| General | |
|---|---|
| Connector | Socket (Type 2)1 |
| Number of outlets | 21 |
| Min. operating temperature | -25 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Phases | 31 |
| Max. current per phase | 32 A1 |
| Connectivity & smart | |
| OCPP | 1.6J1 |
| Ethernet | Yes1 |
| 4G/LTE | Yes1 |
| RFID card reader | Yes1 |
| Display | Yes1 |
| Dynamic load balancing | Yes1 |
| Safety & metering | |
| MID-certified meter | Yes1 |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP541 |
| IK rating | IK101 |
| Dimensions & weight | |
| Width | 312 mm1 |
| Height | 1,343 mm1 |
| Depth | 200 mm1 |
Manufacturer documentation
- Product page
- Brochure / leaflet — Etrel INCH Duo – brochure – 2026_apr_Duo_EN_V1 (april 2026)
External links to Etrel's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Etrel INCH Duo?
The max. charging power (AC) of the Etrel INCH Duo is 22 kW.1
What is the phases of the Etrel INCH Duo?
The phases of the Etrel INCH Duo is 3.1
Which connector does the Etrel INCH Duo use?
The connector of the Etrel INCH Duo is Type 2 socket.1
Which OCPP does the Etrel INCH Duo use?
The OCPP of the Etrel INCH Duo is 1.6J.1
Sources
- Etrel INCH Duo – brochure, 2026_apr_Duo_EN_V1 (april 2026) — Etrel d.o.o. · accessed 27 Sept 2026
