GoodWeLX F25.6-H-20

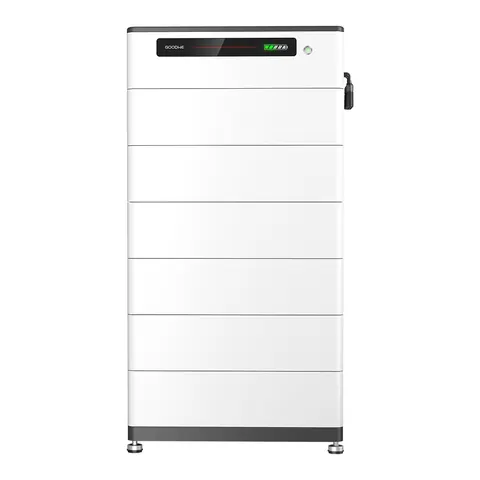

GoodWe LX F25.6-H-20
Image: GoodWerequest removal

The GoodWe LX F25.6-H-20 is a home battery with usable capacity 25.6 kWh, charge power (continuous) 17.92 kW and cell chemistry LFP.1,2

Last updated: Technical specifications ⇄ Compare this model
Search this model
Usable capacity
25.6kWh2
Charge power (continuous)
17.92kW2
Manufacturer data
Cell chemistry
LFP2
Manufacturer data
Nominal capacity
25.6kWh1
Manufacturer data
Expandable up to
230kWh2
Manufacturer data

Technical specifications

General
Cell chemistry LFP2
Performance
Usable capacity 25.6 kWh2
Nominal capacity 25.6 kWh1
Smallest configuration 6.4 kWh2
Expandable up to 230 kWh2
Charge power (continuous) 17.92 kW2
Discharge power (continuous) 17.92 kW2
Efficiency
Depth of discharge 100 %2
Electrical
Backup power Yes2
Dimensions & weight
IP rating IP552
Min. operating temperature -20 °C2
Width 600 mm2
Depth 380 mm2
Weight 290 kg2

Manufacturer documentation

External links to GoodWe's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.

Compare with

Frequently asked questions

What is the usable capacity of the GoodWe LX F25.6-H-20?

The usable capacity of the GoodWe LX F25.6-H-20 is 25.6 kWh.1,2

What is the charge power (continuous) of the GoodWe LX F25.6-H-20?

The charge power (continuous) of the GoodWe LX F25.6-H-20 is 17.92 kW.1,2

Which cell chemistry does the GoodWe LX F25.6-H-20 use?

The cell chemistry of the GoodWe LX F25.6-H-20 is LFP.1,2

Sources

  1. CEC approved solar batteries (Australia) — Clean Energy Regulator (Australian Government), CC BY 4.0 · accessed 29 Sept 2026
  2. Lynx F G2 Series, GoodWe-Single page-20250124-EN-V2.1 — GoodWe · accessed 29 Sept 2026
