GoodWeLX F16.0-H-20

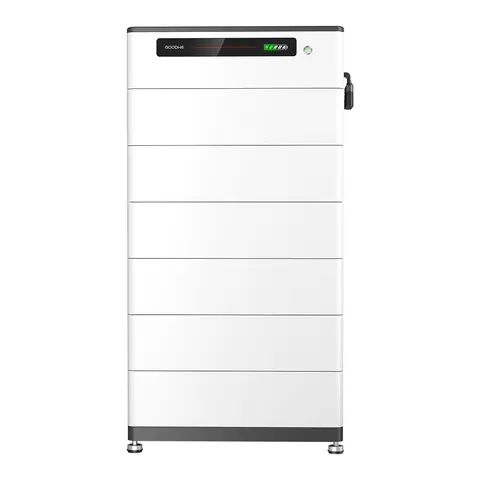

GoodWe LX F16.0-H-20
Image: GoodWerequest removal

The GoodWe LX F16.0-H-20 is a home battery with usable capacity 16 kWh, charge power (continuous) 11.2 kW and cell chemistry LFP.1,2

Last updated: Technical specifications ⇄ Compare this model
Search this model
Usable capacity
16kWh2
Charge power (continuous)
11.2kW2
Manufacturer data
Cell chemistry
LFP2
Manufacturer data
Nominal capacity
16kWh1
Manufacturer data
Expandable up to
230kWh2
Manufacturer data

Technical specifications

General
Cell chemistry LFP2
Performance
Usable capacity 16 kWh2
Nominal capacity 16 kWh1
Smallest configuration 6.4 kWh2
Expandable up to 230 kWh2
Charge power (continuous) 11.2 kW2
Discharge power (continuous) 11.2 kW2
Efficiency
Depth of discharge 100 %2
Electrical
Backup power Yes2
Dimensions & weight
IP rating IP552
Min. operating temperature -20 °C2
Width 600 mm2
Height 1,027 mm2
Depth 380 mm2
Weight 188 kg2

Manufacturer documentation

External links to GoodWe's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.

Compare with

Frequently asked questions

What is the usable capacity of the GoodWe LX F16.0-H-20?

The usable capacity of the GoodWe LX F16.0-H-20 is 16 kWh.1,2

What is the charge power (continuous) of the GoodWe LX F16.0-H-20?

The charge power (continuous) of the GoodWe LX F16.0-H-20 is 11.2 kW.1,2

Which cell chemistry does the GoodWe LX F16.0-H-20 use?

The cell chemistry of the GoodWe LX F16.0-H-20 is LFP.1,2

Sources

  1. CEC approved solar batteries (Australia) — Clean Energy Regulator (Australian Government), CC BY 4.0 · accessed 29 Sept 2026
  2. Lynx F G2 Series, GoodWe-Single page-20250124-EN-V2.1 — GoodWe · accessed 29 Sept 2026
