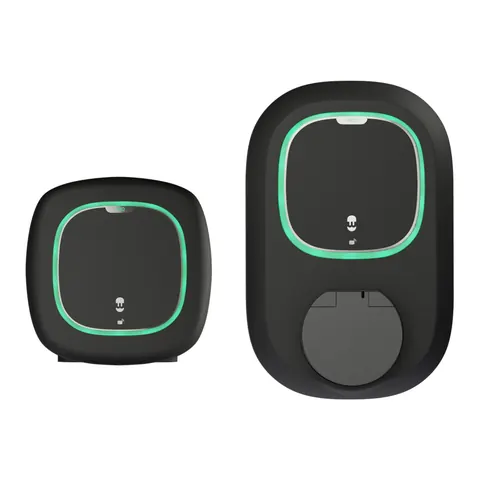

WallboxPulsar Pro 7.4 kW
The Wallbox Pulsar Pro 7.4 kW is a EV charger with max. charging power (AC) 7.4 kW, phases 1 and connector tethered cable (Type 2) or Type 2 socket.1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Connector | Tethered cable (Type 2) / Socket (Type 2)1 |
| Min. operating temperature | -30 °C1 |
| Performance | |
| Max. charging power (AC) | 7.4 kW1 |
| Electrical | |
| Phases | 11 |
| Max. current per phase | 32 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| 4G/LTE | Yes1 |
| RFID card reader | Yes1 |
| Dynamic load balancing | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP551 |
| IK rating | IK101 |
Manufacturer documentation
- Product page
- Datasheet / specifications — Wallbox Pulsar Pro Tethered/Socket – Technical Datasheet – Wallbox_Datasheet_PulsarPro_Shutter_Tethered_EN_b (06/25)
External links to Wallbox's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Wallbox Pulsar Pro 7.4 kW?
The max. charging power (AC) of the Wallbox Pulsar Pro 7.4 kW is 7.4 kW.1
What is the phases of the Wallbox Pulsar Pro 7.4 kW?
The phases of the Wallbox Pulsar Pro 7.4 kW is 1.1
Which connector does the Wallbox Pulsar Pro 7.4 kW use?
The connector of the Wallbox Pulsar Pro 7.4 kW is tethered cable (Type 2) or Type 2 socket.1
Does the Wallbox Pulsar Pro 7.4 kW have dynamic load balancing?
Yes, the Wallbox Pulsar Pro 7.4 kW has dynamic load balancing.1
Sources
- Wallbox Pulsar Pro Tethered/Socket – Technical Datasheet, Wallbox_Datasheet_PulsarPro_Shutter_Tethered_EN_b (06/25) — Wall Box Chargers S.L. · accessed 27 Sept 2026
- SEAI EV Home Charger Grant — Sustainable Energy Authority of Ireland (SEAI)
