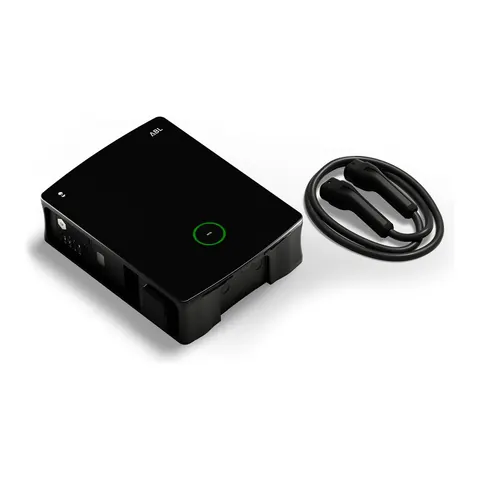

WallboxeM4 Single Controller
The Wallbox eM4 Single Controller is a EV charger with max. charging power (AC) 22 kW, phases 3 and connector Type 2 socket.1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Connector | Socket (Type 2)1 |
| Number of outlets | 11 |
| Min. operating temperature | -25 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Phases | 31 |
| Max. current per phase | 32 A1 |
| Connectivity & smart | |
| OCPP | 1.5, 1.61 |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| 4G/LTE | Yes1 |
| RFID card reader | Yes1 |
| Dynamic load balancing | Yes1 |
| Safety & metering | |
| MID-certified meter | Yes1 |
| RCD protection | Type A1 |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP551 |
| IK rating | IK101 |
| Dimensions & weight | |
| Width | 306.5 mm1 |
| Height | 516 mm1 |
| Depth | 145 mm1 |
| Weight | 7.2 kg1 |
Variants1
The same model in several variants. The specifications above apply to all variants; this table shows what differs.
| Variant | Part number | Eichrecht compliant |
|---|---|---|
| Standard | 100000327 | No |
| Calibration law compliant | 100000453 | Yes |
| With shutter | 100000451 | No |
Manufacturer documentation
- Product page
- Datasheet / specifications — Wallbox eM4 Single / Twin – Technical Data Sheet – Wallbox_Datasheet_eM4_EN_b (04/25)
External links to Wallbox's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Wallbox eM4 Single Controller?
The max. charging power (AC) of the Wallbox eM4 Single Controller is 22 kW.1
What is the phases of the Wallbox eM4 Single Controller?
The phases of the Wallbox eM4 Single Controller is 3.1
Which connector does the Wallbox eM4 Single Controller use?
The connector of the Wallbox eM4 Single Controller is Type 2 socket.1
Which OCPP does the Wallbox eM4 Single Controller use?
The OCPP of the Wallbox eM4 Single Controller is 1.5, 1.6.1
