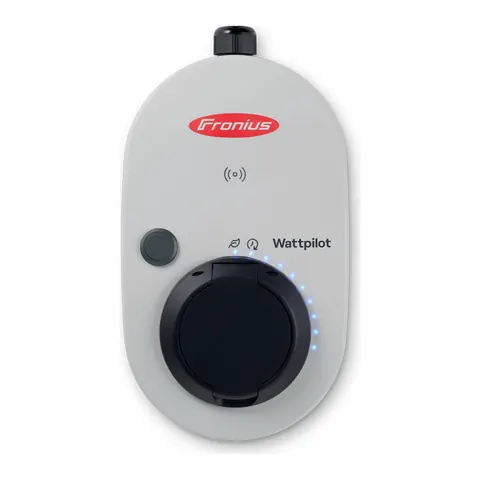

FroniusWattpilot Go 22 J
The Fronius Wattpilot Go 22 J is a EV charger with max. charging power (AC) 22 kW and connector Type 2 socket.1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Connector | Socket (Type 2)1 |
| Min. operating temperature | -25 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| 1↔3 phase switching | Yes1 |
| Max. current per phase | 32 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| RFID card reader | Yes1 |
| Dynamic load balancing | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| Built-in 6 mA DC leakage detection | Yes1 |
| IK rating | IK081 |
| Dimensions & weight | |
| Width | 155 mm1 |
| Height | 287 mm1 |
| Depth | 109 mm1 |
| Weight | 1.8 kg1 |
Manufacturer documentation
- Datasheet / specifications — Fronius Wattpilot – V02 Sep 2024
External links to Fronius's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Fronius Wattpilot Go 22 J?
The max. charging power (AC) of the Fronius Wattpilot Go 22 J is 22 kW.1
Which connector does the Fronius Wattpilot Go 22 J use?
The connector of the Fronius Wattpilot Go 22 J is Type 2 socket.1
Does the Fronius Wattpilot Go 22 J have dynamic load balancing?
Yes, the Fronius Wattpilot Go 22 J has dynamic load balancing.1
