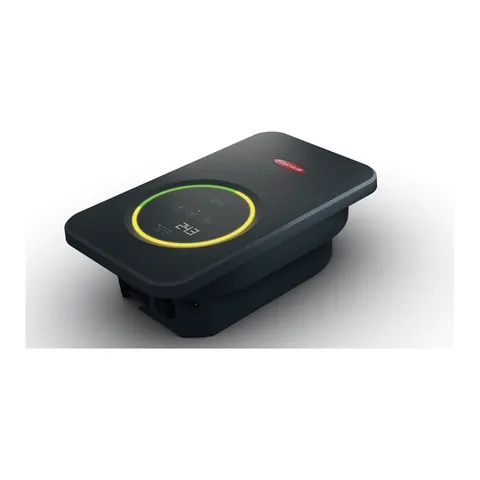

FroniusWattpilot Flex Home
The Fronius Wattpilot Flex Home is a EV charger with max. charging power (AC) 22 kW and connector tethered cable (Type 2).1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Connector | Tethered cable (Type 2)1 |
| Cable length | 6 m1 |
| Min. operating temperature | -25 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| 1↔3 phase switching | Yes1 |
| Max. current per phase | 32 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| RFID card reader | Yes1 |
| Dynamic load balancing | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| MID-certified meter | No1 |
| Eichrecht compliant | No1 |
| Built-in 6 mA DC leakage detection | Yes1 |
| IK rating | IK081 |
| Dimensions & weight | |
| Width | 195 mm1 |
| Height | 325 mm1 |
| Depth | 105 mm1 |
| Weight | 5.4 kg1 |
Manufacturer documentation
- Datasheet / specifications — Fronius Wattpilot Flex Technical data – V05 May 2026
External links to Fronius's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Fronius Wattpilot Flex Home?
The max. charging power (AC) of the Fronius Wattpilot Flex Home is 22 kW.1
Which connector does the Fronius Wattpilot Flex Home use?
The connector of the Fronius Wattpilot Flex Home is tethered cable (Type 2).1
Does the Fronius Wattpilot Flex Home have dynamic load balancing?
Yes, the Fronius Wattpilot Flex Home has dynamic load balancing.1
Sources
- Fronius Wattpilot Flex Technical data, V05 May 2026 — Fronius International GmbH · accessed 29 Sept 2026
- SEAI EV Home Charger Grant — Sustainable Energy Authority of Ireland (SEAI)
