Heat pumps · UK

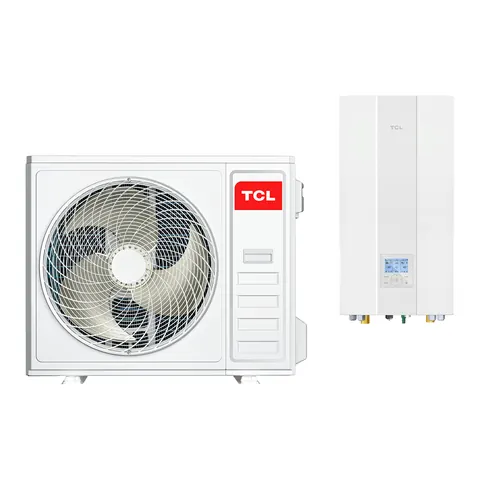

TCLOutdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16D/3HBp-A

TCL Outdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16D/3HBp-A
Image: TCLrequest removal

The TCL Outdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16D/3HBp-A is an air-to-water heat pump with a SCOP of 4.58 (35 °C) and a sound power level of 66 dB(A). Under permitted development the limit is 37 dB(A) measured 1 m in front of the centre of a neighbour’s habitable-room door or window. Free-standing, the indicative minimum distance is 11.2 m; against a wall 15.9 m.1

Last updated: Technical specifications Rules in the UK ⇄ Compare this model
Search this model
SCOP (35 °C)
4.581

Seasonal efficiency: how much heat you get per kWh of electricity across a heating season.

Heating capacity (A7/W35)
14.5kW1
Official source
Outdoor unit sound power
66dB(A)1
Official source
Refrigerant
R321
Official source
Type (source)
Air-to-water1
Official source
UK

Rules in the UK

Minimum distance to your neighbour

MCS 020(a) (England, permitted development since 29 May 2025)2 · 1 m in front of the centre of a neighbour’s habitable-room door or window

Permitted development (MCS 020(a)) ≤ 37 dB(A) · LAeq,5min
Free-standing 11.2 m
Against wall 15.9 m
In corner 22.5 m

Indicative calculation (hemispherical, no barriers). Not a substitute for an MCS 020 assessment.

Boiler Upgrade Scheme

Check conditions

£7,500 – £9,0003Fixed grant (England & Wales)

Fixed grant in England and Wales, deducted from your installer’s quote. £9,000 when replacing oil or LPG off the gas grid (until March 2027). Scotland: Home Energy Scotland grant instead.4,5

  • Must be MCS-certified (product and installer). Check the Ofgem product eligibility list.
  • Rated output 14 kW; the scheme covers systems up to 45 kW.
  • SCOP at 55 °C: 3.35. The installed system needs a SCOP of at least 2.8 (MCS calculation).
Heat pump grants in the UK explained →

Technical specifications

General
Type (source) Air-to-water1
Performance
Heating capacity (A7/W35) 14.5 kW1
Rated output 35 °C 14 kW1
Rated output 55 °C 12 kW1
Min. outdoor temperature -22 °C1
Efficiency
SCOP (35 °C) 4.581
SCOP (55 °C) 3.351
Seasonal efficiency ηs 35 °C 180 %1
Seasonal efficiency ηs 55 °C 131 %1
Energy label 35 °C A, , , 1
Energy label 55 °C A, , 1
COP A7/W35 4.751
Noise
Outdoor unit sound power 66 dB(A)1
Indoor unit sound power 44 dB(A)1
Refrigerant
Refrigerant R321
Refrigerant GWP 6751
Refrigerant charge 1.84 kg1

Variants

This model is registered in 4 combinations (for example with a different indoor unit or cylinder) with exactly the same performance. All figures on this page apply to each of these types. The part of the type number that differs is in bold; small differences (e.g. cylinder volume or anode) are listed after it:

  • Outdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16D/3HBp-A
  • Outdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16S/6HBp-A
  • Outdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16S/9HBp-A
  • Outdoor unit: THF-14S/HBpO-AF, Indoor unit: SMKLd-16S/9HBp-AF

Manufacturer documentation

External links to TCL's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.

Frequently asked questions

Can I install the TCL Outdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16D/3HBp-A without planning permission?

Under MCS 020(a) (England, permitted development since 29 May 2025) the unit must not exceed 37 dB(A) 1 m in front of the centre of a neighbour’s habitable-room door or window. With a sound power of 66 dB(A) that indicatively means 11.2 m free-standing, 15.9 m against a wall or 22.5 m in a corner. Your MCS installer must confirm this.1

How much Boiler Upgrade Scheme grant can you get for the TCL Outdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16D/3HBp-A?

£7,500 in England and Wales, provided the product and installer are MCS-certified (£9,000 when replacing oil or LPG off the gas grid, until March 2027). The installer applies and deducts the grant from your quote.1

Which refrigerant does the TCL Outdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16D/3HBp-A use?

The TCL Outdoor unit: THF-14S/HBpO-A, Indoor unit: SMKLd-16D/3HBp-A uses R32.1

Sources

  1. Heat Pump Keymark certificates — EHPA / DIN CERTCO (Heat Pump KEYMARK) · accessed 29 Sept 2026
  2. MCS 020(a) (England, permitted development since 29 May 2025)
  3. Boiler Upgrade Scheme: what you can get — GOV.UK · accessed 27 Sept 2026
  4. Boiler Upgrade Scheme: guidance for installers (V5) — Ofgem · accessed 27 Sept 2026
  5. Boiler Upgrade Scheme product eligibility — Ofgem · accessed 27 Sept 2026
