DimplexWI 22 TU

Dimplex WI 22 TU

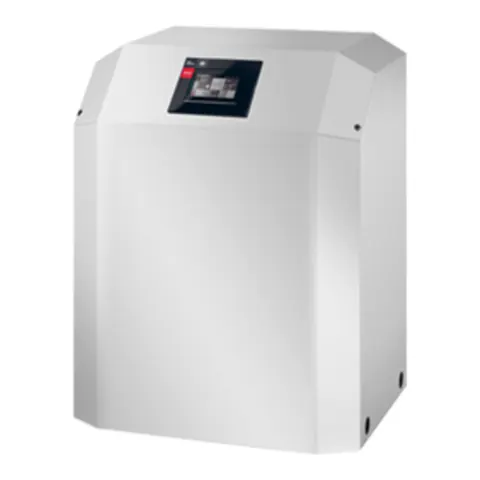

Image: Dimplexrequest removal

The Dimplex WI 22 TU is a heat pump with SCOP (35 °C) 5.97 and refrigerant R410A.1

Last updated: Technical specifications Rules in the UK ⇄ Compare this model
Search this model
SCOP (35 °C)
5.971

Seasonal efficiency: how much heat you get per kWh of electricity across a heating season.

Refrigerant
R410A1
Official source
Type (source)
Water-to-water1
Official source
Rated output 35 °C
21.3kW1
Official source
Rated output 55 °C
19.41kW1
Official source
UK

Rules in the UK

Boiler Upgrade Scheme

Check conditions

£7,500 – £9,0002Fixed grant (England & Wales)

Fixed grant in England and Wales, deducted from your installer’s quote. £9,000 when replacing oil or LPG off the gas grid (until March 2027). Scotland: Home Energy Scotland grant instead.3,4

  • Must be MCS-certified (product and installer). Check the Ofgem product eligibility list.
  • Rated output 21.3 kW; the scheme covers systems up to 45 kW.
  • SCOP at 55 °C: 4.42. The installed system needs a SCOP of at least 2.8 (MCS calculation).
Heat pump grants in the UK explained →

Technical specifications

General
Type (source) Water-to-water1
Compressors 11
Capacity control keine1
Performance
Rated output 35 °C 21.3 kW1
Rated output 55 °C 19.41 kW1
Efficiency
SCOP (35 °C) 5.971
SCOP (55 °C) 4.421
Seasonal efficiency ηs 35 °C 230.7 %1
Seasonal efficiency ηs 55 °C 169 %1
Noise
Indoor unit sound power 51.5 dB(A)1
Refrigerant
Refrigerant R410A1
Refrigerant charge 4 kg1
Electrical
Max. power input 3.92 kW1
Connectivity & smart
SG Ready Yes1

Manufacturer documentation

External links to Dimplex's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.

Frequently asked questions

What is the SCOP (35 °C) of the Dimplex WI 22 TU?

The SCOP (35 °C) of the Dimplex WI 22 TU is 5.97.1

Which refrigerant does the Dimplex WI 22 TU use?

The refrigerant of the Dimplex WI 22 TU is R410A.1

How much Boiler Upgrade Scheme grant can you get for the Dimplex WI 22 TU?

£7,500 in England and Wales, provided the product and installer are MCS-certified (£9,000 when replacing oil or LPG off the gas grid, until March 2027). The installer applies and deducts the grant from your quote.1
