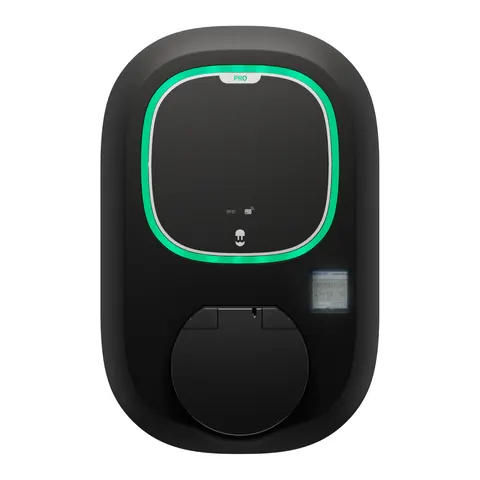

WallboxPulsar Pro (2026)
The Wallbox Pulsar Pro (2026) is a EV charger with max. charging power (AC) 22 kW, phases 3 and connector Type 2 socket.1
Key figures
Rules in the UK
Home chargers sold in Great Britain must meet the smart charge point regulations (smart functionality, default off-peak charging).
Technical specifications
| General | |
|---|---|
| Connector | Socket (Type 2)1 |
| Number of outlets | 11 |
| Min. operating temperature | -30 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Phases | 31 |
| 1↔3 phase switching | Yes1 |
| Max. current per phase | 32 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| 4G/LTE | Yes1 |
| RFID card reader | Yes1 |
| ISO 15118 / Plug & Charge | Yes1 |
| Dynamic load balancing | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| MID-certified meter | Yes1 |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP551 |
| Dimensions & weight | |
| Width | 204.3 mm1 |
| Height | 313 mm1 |
| Depth | 142.5 mm1 |
| Weight | 2.5 kg1 |
Variants1
The same model in several variants. The specifications above apply to all variants; this table shows what differs.
| Variant | Part number |
|---|---|
| Type 2 shuttered socket, black | 100000827 |
Manufacturer documentation
- Product page
- Datasheet / specifications — Wallbox Pulsar Pro (2026) – Technical Data Sheet – Pulsar_Pro(2026)_Series_EN_b (01/26)
External links to Wallbox's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Wallbox Pulsar Pro (2026)?
The max. charging power (AC) of the Wallbox Pulsar Pro (2026) is 22 kW.1
What is the phases of the Wallbox Pulsar Pro (2026)?
The phases of the Wallbox Pulsar Pro (2026) is 3.1
Which connector does the Wallbox Pulsar Pro (2026) use?
The connector of the Wallbox Pulsar Pro (2026) is Type 2 socket.1
Does the Wallbox Pulsar Pro (2026) have dynamic load balancing?
Yes, the Wallbox Pulsar Pro (2026) has dynamic load balancing.1
Sources
- Wallbox Pulsar Pro (2026) – Technical Data Sheet, Pulsar_Pro(2026)_Series_EN_b (01/26) — Wall Box Chargers S.L. · accessed 27 Sept 2026
