Schneider ElectricEVH5A22N400F

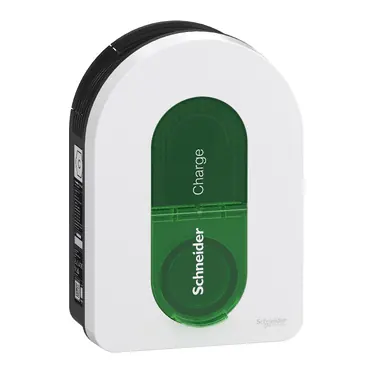

Schneider Electric EVH5A22N400F
Image: Schneider Electricrequest removal

The Schneider Electric EVH5A22N400F is a EV charger with max. charging power (AC) 22 kW, connector Type 2 socket and OCPP 1.6J.1

Last updated: Technical specifications Rules in the UK ⇄ Compare this model
Search this model
Max. charging power (AC)
22kW1
Connector
Socket1Type 2
Manufacturer data
OCPP
1.6J1
Manufacturer data
Built-in 6 mA DC leakage detection
Yes1
Manufacturer data
Wi-Fi
Yes1
Manufacturer data
UK

Rules in the UK

Home chargers sold in Great Britain must meet the smart charge point regulations (smart functionality, default off-peak charging).

Technical specifications

General
Connector Socket (Type 2)1
Performance
Max. charging power (AC) 22 kW1
Connectivity & smart
OCPP 1.6J1
Wi-Fi Yes1
Ethernet Yes1
Safety & metering
Built-in 6 mA DC leakage detection Yes1
IP rating IP551
IK rating IK101
Dimensions & weight
Width 244 mm1
Height 352 mm1
Depth 117 mm1
Weight 3.2 kg1

Manufacturer documentation

External links to Schneider Electric's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.

Compare with

Frequently asked questions

What is the max. charging power (AC) of the Schneider Electric EVH5A22N400F?

The max. charging power (AC) of the Schneider Electric EVH5A22N400F is 22 kW.1

Which connector does the Schneider Electric EVH5A22N400F use?

The connector of the Schneider Electric EVH5A22N400F is Type 2 socket.1

Which OCPP does the Schneider Electric EVH5A22N400F use?

The OCPP of the Schneider Electric EVH5A22N400F is 1.6J.1

Sources

  1. Schneider Charge, 998-22833864 — Schneider Electric · accessed 2 Oct 2026
