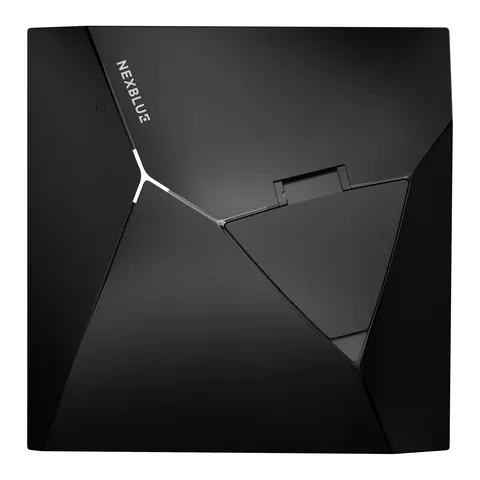

NexBlueEdge 2
The NexBlue Edge 2 is a EV charger with max. charging power (AC) 22 kW, phases 3 and connector Type 2 socket.1
Key figures
UK
Rules in the UK
Home chargers sold in Great Britain must meet the smart charge point regulations (smart functionality, default off-peak charging).
Technical specifications
| General | |
|---|---|
| Connector | Socket (Type 2)1 |
| Min. operating temperature | -30 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Phases | 31 |
| 1↔3 phase switching | Yes1 |
| Max. current per phase | 32 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| OCPP | 1.6J, 2.0.11 |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| 4G/LTE | Yes1 |
| RFID card reader | Yes1 |
| ISO 15118 / Plug & Charge | Yes1 |
| Dynamic load balancing | Yes1 |
| Solar surplus charging | Yes1 |
| Bidirectional (V2G/V2H) | Yes1 |
| Safety & metering | |
| IP rating | IP541 |
| IK rating | IK101 |
| Dimensions & weight | |
| Width | 230 mm1 |
| Height | 235 mm1 |
| Depth | 107 mm1 |
| Weight | 2.3 kg1 |
| Warranty & lifespan | |
| Warranty | 5 years1 |
Manufacturer documentation
- Datasheet / specifications — NexBlue Edge 2 Specifications – 1
External links to NexBlue's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the NexBlue Edge 2?
The max. charging power (AC) of the NexBlue Edge 2 is 22 kW.1
What is the phases of the NexBlue Edge 2?
The phases of the NexBlue Edge 2 is 3.1
Which connector does the NexBlue Edge 2 use?
The connector of the NexBlue Edge 2 is Type 2 socket.1
Which OCPP does the NexBlue Edge 2 use?
The OCPP of the NexBlue Edge 2 is 1.6-J & 2.0.1.1
Sources
- NexBlue Edge 2 Specifications, 1 — NexBlue · accessed 29 Sept 2026
