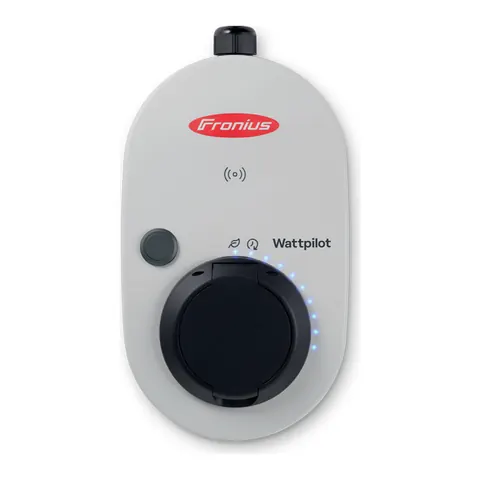

FroniusWattpilot Home 22 J
The Fronius Wattpilot Home 22 J is a EV charger with max. charging power (AC) 22 kW and connector Type 2 socket.1
Key figures
UK
Rules in the UK
Home chargers sold in Great Britain must meet the smart charge point regulations (smart functionality, default off-peak charging).
Technical specifications
| General | |
|---|---|
| Connector | Socket (Type 2)1 |
| Min. operating temperature | -25 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| 1↔3 phase switching | Yes1 |
| Max. current per phase | 32 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| RFID card reader | Yes1 |
| Dynamic load balancing | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| Built-in 6 mA DC leakage detection | Yes1 |
| IK rating | IK081 |
| Dimensions & weight | |
| Width | 155 mm1 |
| Height | 287 mm1 |
| Depth | 109 mm1 |
| Weight | 2.3 kg1 |
Manufacturer documentation
- Datasheet / specifications — Fronius Wattpilot – V02 Sep 2024
External links to Fronius's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Fronius Wattpilot Home 22 J?
The max. charging power (AC) of the Fronius Wattpilot Home 22 J is 22 kW.1
Which connector does the Fronius Wattpilot Home 22 J use?
The connector of the Fronius Wattpilot Home 22 J is Type 2 socket.1
Does the Fronius Wattpilot Home 22 J have dynamic load balancing?
Yes, the Fronius Wattpilot Home 22 J has dynamic load balancing.1
Sources
- Fronius Wattpilot, V02 Sep 2024 — Fronius International GmbH · accessed 29 Sept 2026
