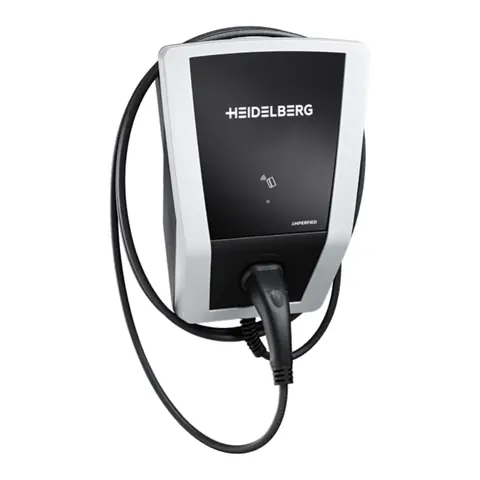

AMPERFIEDWallbox connect.business
The AMPERFIED Wallbox connect.business is a EV charger with max. charging power (AC) 11 kW, phases 3 and connector tethered cable (Type 2).1
Key figures
UK
Rules in the UK
Home chargers sold in Great Britain must meet the smart charge point regulations (smart functionality, default off-peak charging).
Technical specifications
| General | |
|---|---|
| Connector | Tethered cable (Type 2)1 |
| Cable length | 7.5 m1 |
| Min. operating temperature | -25 °C1 |
| Performance | |
| Max. charging power (AC) | 11 kW1 |
| Electrical | |
| Phases | 31 |
| Max. current per phase | 16 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| OCPP | 1.61 |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| RFID card reader | Yes1 |
| Safety & metering | |
| MID-certified meter | Yes1 |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP541 |
| IK rating | IK081 |
| Dimensions & weight | |
| Width | 345 mm1 |
| Height | 462 mm1 |
| Depth | 142 mm1 |
| Weight | 6.8 kg1 |
Manufacturer documentation
- Product page
- Datasheet / specifications — Amperfied Wallbox connect.business – zonder versienummer
External links to AMPERFIED's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
- Wallbox connect.businessvsPeblarHome
- Wallbox connect.businessvsABBTerra AC W11
- Wallbox connect.businessvsEcotapDuo Wallcharger 11 kW
- Wallbox connect.businessvsEcotapSingle Wallcharger 11 kW
- Wallbox connect.businessvsHeidelbergWallbox Energy Control
- Wallbox connect.businessvsSchneider ElectricEVH5A11N2C5
Frequently asked questions
What is the max. charging power (AC) of the AMPERFIED Wallbox connect.business?
The max. charging power (AC) of the AMPERFIED Wallbox connect.business is 11 kW.1
What is the phases of the AMPERFIED Wallbox connect.business?
The phases of the AMPERFIED Wallbox connect.business is 3.1
Which connector does the AMPERFIED Wallbox connect.business use?
The connector of the AMPERFIED Wallbox connect.business is tethered cable (Type 2).1
Which OCPP does the AMPERFIED Wallbox connect.business use?
The OCPP of the AMPERFIED Wallbox connect.business is 1.6.1
Sources
- Amperfied Wallbox connect.business, zonder versienummer — Amperfied GmbH · accessed 29 Sept 2026
