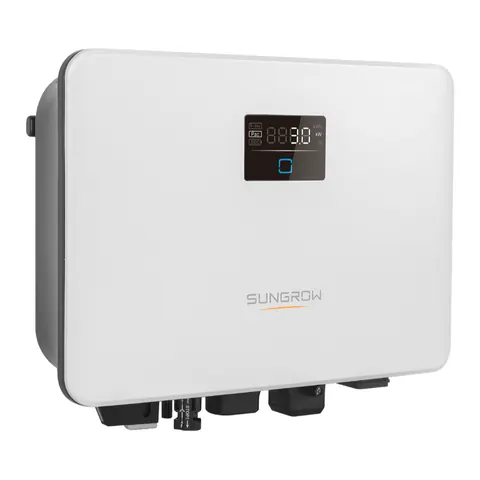

SungrowSG2.0RS-S
The Sungrow SG2.0RS-S is a solar inverter with AC power 2 kW, MPP trackers 1 and european efficiency 96.9 %.1
Key figures
Technical specifications
| Performance | |
|---|---|
| AC power | 2 kW1 |
| Max. PV array power | 3 kWp1 |
| MPP trackers | 11 |
| Strings per MPPT | 11 |
| Efficiency | |
| Max. efficiency | 97.8 %1 |
| European efficiency | 96.9 %1 |
| Electrical | |
| MPPT voltage min. | 40 V1 |
| MPPT voltage max. | 560 V1 |
| Max. input current per MPPT | 16 A1 |
| Phases | 11 |
| Connectivity & smart | |
| Wi-Fi / monitoring | Yes1 |
| Dimensions & weight | |
| IP rating | IP651 |
| Width | 320 mm1 |
| Height | 225 mm1 |
| Depth | 120 mm1 |
| Weight | 6 kg1 |
Manufacturer documentation
- Product page
- Datasheet / specifications — SG2.0RS-S Datasheet – 13
External links to Sungrow's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the AC power of the Sungrow SG2.0RS-S?
The AC power of the Sungrow SG2.0RS-S is 2 kW.1
What is the MPP trackers of the Sungrow SG2.0RS-S?
The MPP trackers of the Sungrow SG2.0RS-S is 1.1
What is the european efficiency of the Sungrow SG2.0RS-S?
The european efficiency of the Sungrow SG2.0RS-S is 96.9 %.1
What is the max. PV array power of the Sungrow SG2.0RS-S?
The max. PV array power of the Sungrow SG2.0RS-S is 3 kWp.1
Sources
- SG2.0RS-S Datasheet, 13 — Sungrow Power Supply Co., Ltd. · accessed 29 Sept 2026
