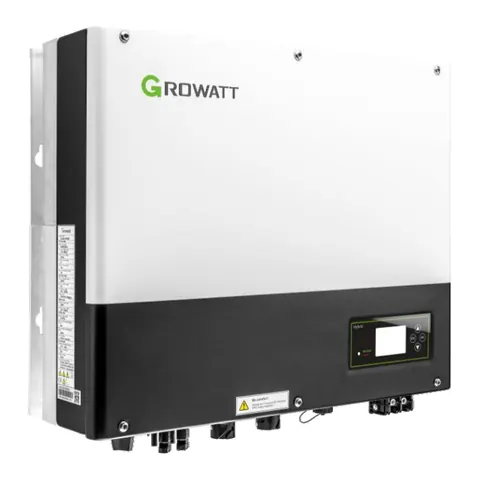

GrowattSPH 3600TL BL-UP
The Growatt SPH 3600TL BL-UP is a solar inverter with AC power 3.68 kW, MPP trackers 2 and european efficiency 97 %.1
Key figures
Technical specifications
| Performance | |
|---|---|
| AC power | 3.68 kW1 |
| Max. PV array power | 7.5 kWp1 |
| MPP trackers | 21 |
| Strings per MPPT | 11 |
| Efficiency | |
| Max. efficiency | 97.2 %1 |
| European efficiency | 97 %1 |
| Electrical | |
| MPPT voltage min. | 120 V1 |
| MPPT voltage max. | 550 V1 |
| Max. input current per MPPT | 13.5 A1 |
| Connectivity & smart | |
| Hybrid (battery-ready) | Yes1 |
| Backup power | Yes1 |
| Dimensions & weight | |
| IP rating | IP651 |
| Width | 565 mm1 |
| Height | 456 mm1 |
| Depth | 188 mm1 |
| Weight | 27 kg1 |
| Warranty & lifespan | |
| Warranty | 5 years1 |
Manufacturer documentation
- Product page
- Datasheet / specifications — SPH 3000-6000TL BL-UP – 1
External links to Growatt's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the AC power of the Growatt SPH 3600TL BL-UP?
The AC power of the Growatt SPH 3600TL BL-UP is 3.68 kW.1
What is the MPP trackers of the Growatt SPH 3600TL BL-UP?
The MPP trackers of the Growatt SPH 3600TL BL-UP is 2.1
What is the european efficiency of the Growatt SPH 3600TL BL-UP?
The european efficiency of the Growatt SPH 3600TL BL-UP is 97 %.1
What is the max. PV array power of the Growatt SPH 3600TL BL-UP?
The max. PV array power of the Growatt SPH 3600TL BL-UP is 7.5 kWp.1
Sources
- SPH 3000-6000TL BL-UP, 1 — SHENZHEN GROWATT NEW ENERGY CO., LTD · accessed 1 Oct 2026
