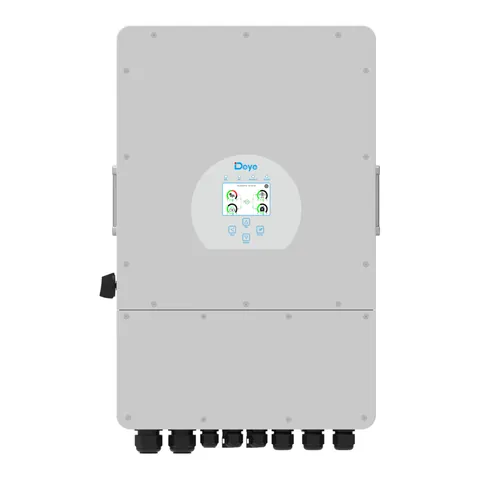

DeyeSUN-12K-SG04LP3-EU
The Deye SUN-12K-SG04LP3-EU is a solar inverter with AC power 12 kW, MPP trackers 2 and max. PV array power 15.6 kWp.1
Key figures
Technical specifications
| Performance | |
|---|---|
| AC power | 12 kW1 |
| Max. PV array power | 15.6 kWp1 |
| MPP trackers | 21 |
| Efficiency | |
| Max. efficiency | 97.6 %1 |
| Noise | |
| Noise | 45 dB(A)1 |
| Electrical | |
| MPPT voltage min. | 200 V1 |
| MPPT voltage max. | 650 V1 |
| Connectivity & smart | |
| Hybrid (battery-ready) | Yes1 |
| Backup power | Yes1 |
| Dimensions & weight | |
| IP rating | IP651 |
| Width | 422 mm1 |
| Height | 699.3 mm1 |
| Depth | 279 mm1 |
| Weight | 33.6 kg1 |
| Warranty & lifespan | |
| Warranty | 5 years1 |
Manufacturer documentation
- Product page
- Datasheet / specifications — Deye SUN-5/6/8/10/12K-SG04LP3-EU/BE Datasheet – 605117.SH
External links to Deye's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the AC power of the Deye SUN-12K-SG04LP3-EU?
The AC power of the Deye SUN-12K-SG04LP3-EU is 12 kW.1
What is the MPP trackers of the Deye SUN-12K-SG04LP3-EU?
The MPP trackers of the Deye SUN-12K-SG04LP3-EU is 2.1
What is the max. PV array power of the Deye SUN-12K-SG04LP3-EU?
The max. PV array power of the Deye SUN-12K-SG04LP3-EU is 15.6 kWp.1
Does the Deye SUN-12K-SG04LP3-EU have hybrid (battery-ready)?
Yes, the Deye SUN-12K-SG04LP3-EU has hybrid (battery-ready).1
Sources
- Deye SUN-5/6/8/10/12K-SG04LP3-EU/BE Datasheet, 605117.SH — Deye · accessed 29 Sept 2026
