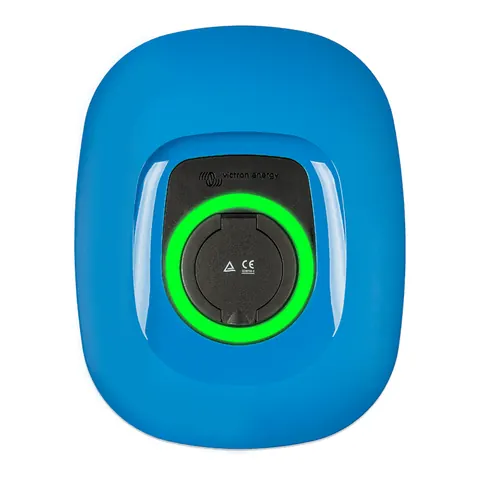

VictronEV Charging Station NS
The Victron EV Charging Station NS is a EV charger with max. charging power (AC) 22 kW.1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Min. operating temperature | -25 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Max. current per phase | 32 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| IP rating | IP441 |
| Dimensions & weight | |
| Width | 292 mm1 |
| Height | 372 mm1 |
| Depth | 122 mm1 |
| Weight | 3 kg1 |
Manufacturer documentation
- Product page
- Datasheet / specifications — EV Charging Station NS – 22 kW – 1
External links to Victron's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Victron EV Charging Station NS?
The max. charging power (AC) of the Victron EV Charging Station NS is 22 kW.1
Sources
- EV Charging Station NS – 22 kW, 1 — Victron Energy B.V. · accessed 29 Sept 2026
- SEAI EV Home Charger Grant — Sustainable Energy Authority of Ireland (SEAI)
