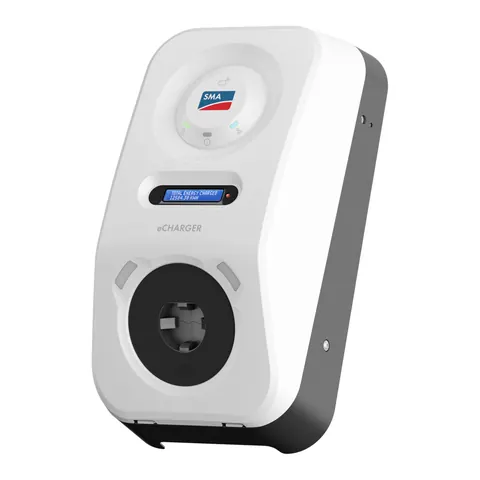

SMAEVC22-3AC-20
The SMA EVC22-3AC-20 is a EV charger with max. charging power (AC) 22 kW, phases 3 and connector Type 2 socket.1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Connector | Socket (Type 2)1 |
| Min. operating temperature | -25 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Phases | 31 |
| 1↔3 phase switching | Yes1 |
| Max. current per phase | 32 A1 |
| Connectivity & smart | |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| RFID card reader | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| Built-in 6 mA DC leakage detection | Yes1 |
| Dimensions & weight | |
| Width | 270 mm1 |
| Height | 495 mm1 |
| Depth | 190 mm1 |
| Weight | 5 kg1 |
Manufacturer documentation
- Product page
- Datasheet / specifications — SMA eCharger Datasheet – 03/2025
External links to SMA's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the SMA EVC22-3AC-20?
The max. charging power (AC) of the SMA EVC22-3AC-20 is 22 kW.1
What is the phases of the SMA EVC22-3AC-20?
The phases of the SMA EVC22-3AC-20 is 3.1
Which connector does the SMA EVC22-3AC-20 use?
The connector of the SMA EVC22-3AC-20 is Type 2 socket.1
