Schneider ElectricEVH5A11N2C5

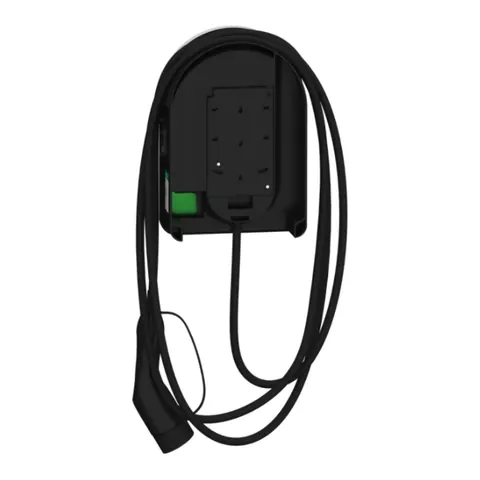

The Schneider Electric EVH5A11N2C5 is a EV charger with max. charging power (AC) 11 kW, phases 3 and connector tethered cable (Type 2).1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Connector | Tethered cable (Type 2)1 |
| Cable length | 5 m1 |
| Performance | |
| Max. charging power (AC) | 11 kW1 |
| Electrical | |
| Phases | 31 |
| Connectivity & smart | |
| OCPP | 1.6J1 |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| Safety & metering | |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP551 |
| IK rating | IK101 |
| Dimensions & weight | |
| Width | 244 mm1 |
| Height | 352 mm1 |
| Depth | 107 mm1 |
| Weight | 4.4 kg1 |
Manufacturer documentation
- Product page
- Datasheet / specifications — Schneider Charge – 998-22833864
External links to Schneider Electric's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Schneider Electric EVH5A11N2C5?
The max. charging power (AC) of the Schneider Electric EVH5A11N2C5 is 11 kW.1
What is the phases of the Schneider Electric EVH5A11N2C5?
The phases of the Schneider Electric EVH5A11N2C5 is 3.1
Which connector does the Schneider Electric EVH5A11N2C5 use?
The connector of the Schneider Electric EVH5A11N2C5 is tethered cable (Type 2).1
Which OCPP does the Schneider Electric EVH5A11N2C5 use?
The OCPP of the Schneider Electric EVH5A11N2C5 is 1.6J.1
