Juice TechnologyJUICE CHARGER me 3

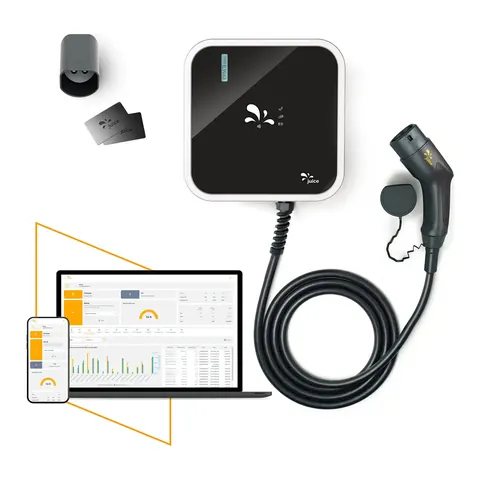

The Juice Technology JUICE CHARGER me 3 is a EV charger with max. charging power (AC) 22 kW, phases 3 and OCPP 1.6.1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Min. operating temperature | -30 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Phases | 31 |
| Max. current per phase | 32 A1 |
| Min. charging current | 6 A1 |
| Connectivity & smart | |
| OCPP | 1.61 |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| RFID card reader | Yes1 |
| Dynamic load balancing | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| MID-certified meter | Yes1 |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP671 |
| IK rating | IK101 |
| Dimensions & weight | |
| Width | 280 mm1 |
| Height | 280 mm1 |
| Depth | 125 mm1 |
| Weight | 6.5 kg1 |
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Juice Technology JUICE CHARGER me 3?
The max. charging power (AC) of the Juice Technology JUICE CHARGER me 3 is 22 kW.1
What is the phases of the Juice Technology JUICE CHARGER me 3?
The phases of the Juice Technology JUICE CHARGER me 3 is 3.1
Which OCPP does the Juice Technology JUICE CHARGER me 3 use?
The OCPP of the Juice Technology JUICE CHARGER me 3 is 1.6.1
Does the Juice Technology JUICE CHARGER me 3 have dynamic load balancing?
Yes, the Juice Technology JUICE CHARGER me 3 has dynamic load balancing.1
