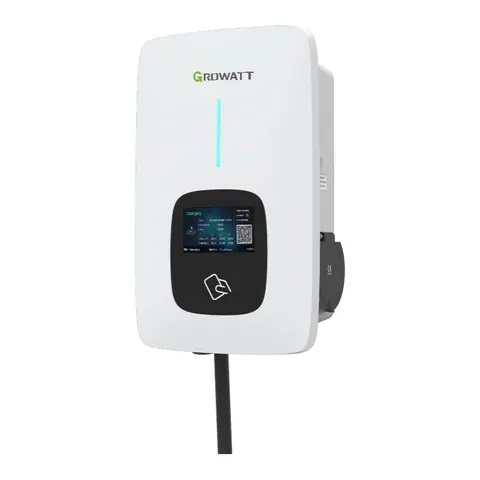

GrowattTHOR 22AS-P-V1
The Growatt THOR 22AS-P-V1 is a EV charger with max. charging power (AC) 22 kW, connector tethered cable (Type 2) and OCPP 1.6.1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Connector | Tethered cable (Type 2)1 |
| Cable length | 5 m1 |
| Min. operating temperature | -25 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Max. current per phase | 32 A1 |
| Standby power | 8 W1 |
| Connectivity & smart | |
| OCPP | 1.61 |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| RFID card reader | Yes1 |
| Display | Yes1 |
| Dynamic load balancing | Yes1 |
| Solar surplus charging | Yes1 |
| Safety & metering | |
| Built-in 6 mA DC leakage detection | Yes1 |
| IP rating | IP651 |
| Dimensions & weight | |
| Width | 240 mm1 |
| Height | 380 mm1 |
| Depth | 164 mm1 |
| Weight | 12.5 kg1 |
Manufacturer documentation
- Datasheet / specifications — GROWATT THOR Smart EV Charger Datasheet – V1
External links to Growatt's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the Growatt THOR 22AS-P-V1?
The max. charging power (AC) of the Growatt THOR 22AS-P-V1 is 22 kW.1
Which connector does the Growatt THOR 22AS-P-V1 use?
The connector of the Growatt THOR 22AS-P-V1 is tethered cable (Type 2).1
Which OCPP does the Growatt THOR 22AS-P-V1 use?
The OCPP of the Growatt THOR 22AS-P-V1 is 1.6.1
Does the Growatt THOR 22AS-P-V1 have dynamic load balancing?
Yes, the Growatt THOR 22AS-P-V1 has dynamic load balancing.1
Sources
- GROWATT THOR Smart EV Charger Datasheet, V1 — SHENZHEN GROWATT NEW ENERGY CO.,LTD. · accessed 1 Oct 2026
- SEAI EV Home Charger Grant — Sustainable Energy Authority of Ireland (SEAI)
