Charge AmpsHalo 7.4 kW

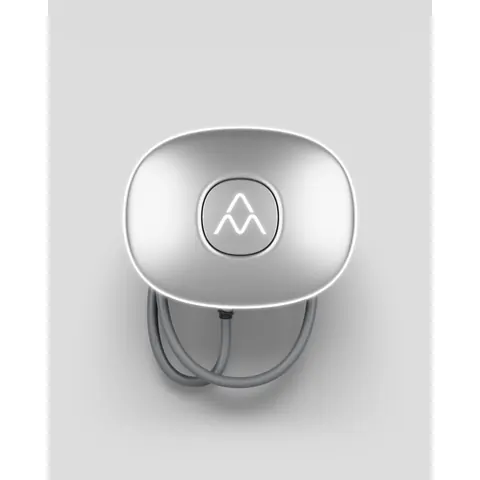

Charge Amps Halo 7.4 kW
Image: Charge Ampsrequest removal

The Charge Amps Halo 7.4 kW is a EV charger with max. charging power (AC) 7.4 kW, phases 1 and connector tethered cable (Type 2).1,2

Last updated: Technical specifications Rules in Ireland ⇄ Compare this model
Search this model
Max. charging power (AC)
7.4kW1
Phases
12
Manufacturer data
Connector
Tethered cable2Type 2
Manufacturer data
Dynamic load balancing
Yes2
Manufacturer data
Max. current per phase
32A2
Manufacturer data
IE

Rules in Ireland

A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.

SEAI EV Home Charger Grant

Unknown

Up to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).

Technical specifications

General
Connector Tethered cable (Type 2)2
Cable length 7.5 m2
Number of outlets 11
Min. operating temperature -35 °C2
Performance
Max. charging power (AC) 7.4 kW1
Electrical
Phases 12
Max. current per phase 32 A2
Connectivity & smart
RFID card reader Yes2
Dynamic load balancing Yes2
Solar surplus charging Yes2
Safety & metering
IP rating IP662
IK rating IK102
Dimensions & weight
Width 262.4 mm2
Height 203.2 mm2
Depth 159.4 mm2
Weight 4 kg2
Grants & market
OZEV eligible (UK) Yes1

Manufacturer documentation

External links to Charge Amps's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.

Compare with

Frequently asked questions

What is the max. charging power (AC) of the Charge Amps Halo 7.4 kW?

The max. charging power (AC) of the Charge Amps Halo 7.4 kW is 7.4 kW.1,2

What is the phases of the Charge Amps Halo 7.4 kW?

The phases of the Charge Amps Halo 7.4 kW is 1.1,2

Which connector does the Charge Amps Halo 7.4 kW use?

The connector of the Charge Amps Halo 7.4 kW is tethered cable (Type 2).1,2

Does the Charge Amps Halo 7.4 kW have dynamic load balancing?

Yes, the Charge Amps Halo 7.4 kW has dynamic load balancing.1,2

Sources

  1. Authorised chargepoint model list — Office for Zero Emission Vehicles (OZEV), GOV.UK · accessed 27 Sept 2026
  2. Charge Amps Halo – product data sheet, 240306 (03/2024) — Charge Amps AB · accessed 27 Sept 2026
  3. SEAI EV Home Charger Grant — Sustainable Energy Authority of Ireland (SEAI)
