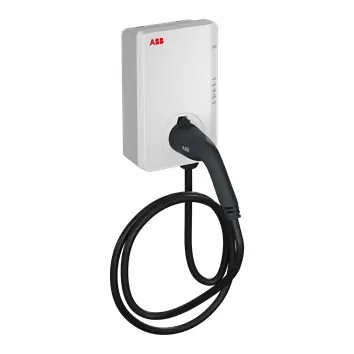

ABBTerra AC W22 Eichrecht
The ABB Terra AC W22 Eichrecht is a EV charger with max. charging power (AC) 22 kW, phases 3 and connector tethered cable (Type 2) or Type 2 socket.1
Key figures
Rules in Ireland
A home charger of up to about 7 kW usually fits within the standard 12 kVA supply (Maximum Import Capacity), so no upgrade application to ESB Networks is needed; if you would exceed it, apply online for a 16 kVA connection. Most Irish homes are single-phase, so 7.4 kW (32 A) is the typical maximum.
SEAI EV Home Charger Grant
UnknownUp to €300 towards buying and installing a smart charger listed on SEAI's Smart Charger Register; you do not need to own an EV, but you need off-street parking at the home, and work may only start after the Letter of Offer. One grant per property, installed by a Safe Electric-registered electrician; apartment developments use the separate Apartment Charging Grant (up to €600 per charge point).
Technical specifications
| General | |
|---|---|
| Connector | Tethered cable (Type 2) / Socket (Type 2)1 |
| Number of outlets | 11 |
| Min. operating temperature | -35 °C1 |
| Performance | |
| Max. charging power (AC) | 22 kW1 |
| Electrical | |
| Phases | 31 |
| Max. current per phase | 32 A1 |
| Connectivity & smart | |
| OCPP | 1.6J1 |
| Wi-Fi | Yes1 |
| Ethernet | Yes1 |
| 4G/LTE | Yes1 |
| RFID card reader | Yes1 |
| Display | Yes1 |
| Dynamic load balancing | Yes1 |
| Safety & metering | |
| MID-certified meter | Yes1 |
| Eichrecht compliant | Yes1 |
| IP rating | IP541 |
| IK rating | IK101 |
| Dimensions & weight | |
| Width | 195 mm1 |
| Height | 320 mm1 |
| Depth | 110 mm1 |
Variants1
The same model in several variants. The specifications above apply to all variants; this table shows what differs.
| Variant | Part number | Connector | Cable length |
|---|---|---|---|
| Type 2 socket | ABB6AGC107236 | Socket (Type 2) | – |
| Tethered cable 5 m | ABB6AGC107239 | Tethered cable (Type 2) | 5 m |
Manufacturer documentation
- Product page
- Brochure / leaflet — ABB Terra AC wallbox – brochure – 9AKK107680A2257 Rev. G (12/2024)
External links to ABB's official website. The manufacturer may change or move documents; where they differ, the manufacturer's latest version applies.
Compare with
Frequently asked questions
What is the max. charging power (AC) of the ABB Terra AC W22 Eichrecht?
The max. charging power (AC) of the ABB Terra AC W22 Eichrecht is 22 kW.1
What is the phases of the ABB Terra AC W22 Eichrecht?
The phases of the ABB Terra AC W22 Eichrecht is 3.1
Which connector does the ABB Terra AC W22 Eichrecht use?
The connector of the ABB Terra AC W22 Eichrecht is tethered cable (Type 2) or Type 2 socket.1
Which OCPP does the ABB Terra AC W22 Eichrecht use?
The OCPP of the ABB Terra AC W22 Eichrecht is 1.6J.1
